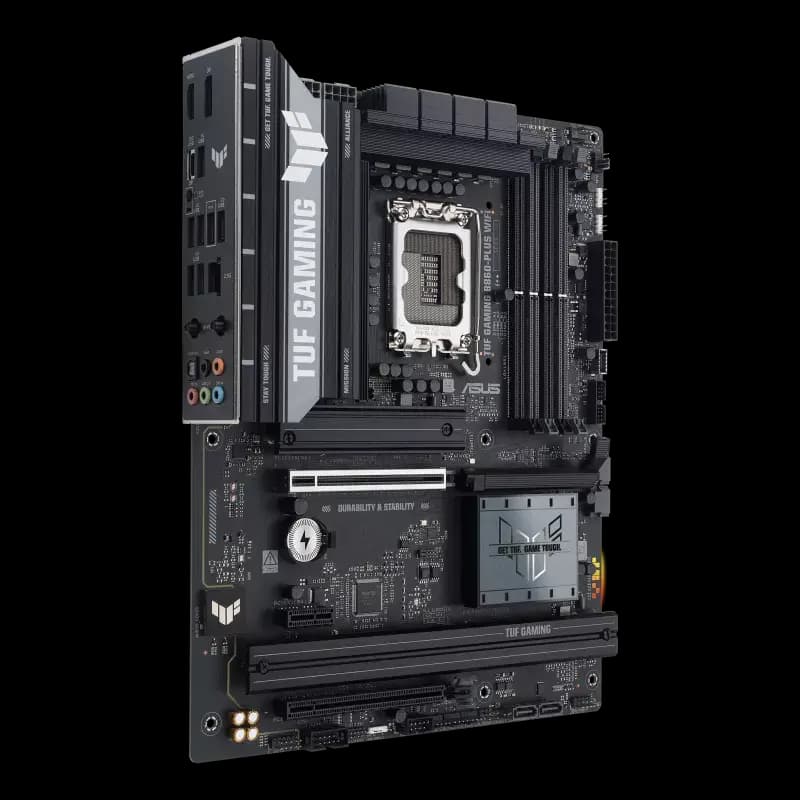

ASUS, TUF GAMING B860-PLUS WIFI

Brand: ASUS

Model: TUF GAMING B860-PLUS WIFI

Processor

Supports Intel® Core™ Ultra processors (2 series), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

Intel® B860 chipset

Memory

4 x DIMM slots, max. 256 GB, DDR5

Supports 8666+ MT/s (OC), non-ECC, unbuffered, clocked unbuffered DIMM (CUDIMM)*

Dual-channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III (AEMPIII)

Non-ECC, unbuffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort

1 x HDMI™ port

1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Supports up to 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Supports up to 4K@60Hz as specified in DisplayPort 1.4.

Expansion slots

Intel® Core™ Ultra processors (2 series)

1 x PCIe 5.0 x16 slot

Intel® B860 chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)*

1 x PCIe 4.0 x1 slot*

* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) operates at PCIe x1 mode, PCIEX16(G4) will only operate at PCIe x2 mode.

Memory

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® Core™ Ultra processors (2 series)*

M.2_1 slot (Key M), Type 2280 (supports PCIe 5.0 x4 mode)

Intel® B860 chipset

M.2_2 slot (Key M), Type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), Type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency bands**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps ​​transfer rate.

Bluetooth® v5.4

For Windows 11, Wi-Fi 7 requires 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

USB

Rear USB (8 ports total)

1 x USB 20 Gb/s port (1 x USB Type-C®)

2 x USB 10 Gb/s ports (2 x Type-A)

3 x USB 5 Gb/s ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (5 ports total)

1 x USB 10 Gb/s connector (supports USB Type-C®)

1 x USB 5 Gb/s header supports 2 additional USB 5 Gb/s ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

USB Type-C® Power Output: Max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack Detection, Multi-Streaming, Front Panel Jack Reassignment

- Supports 24-bit/192 kHz playback

Audio Features

- Audio Protection

- Rear Optical S/PDIF Out Port

- Premium Audio Capacitors

- Audio PCB Layers

- Audio Coating

* Due to HDA ​​bandwidth limitations, 32-bit/192 kHz is not supported for 7.1 Surround Sound audio.

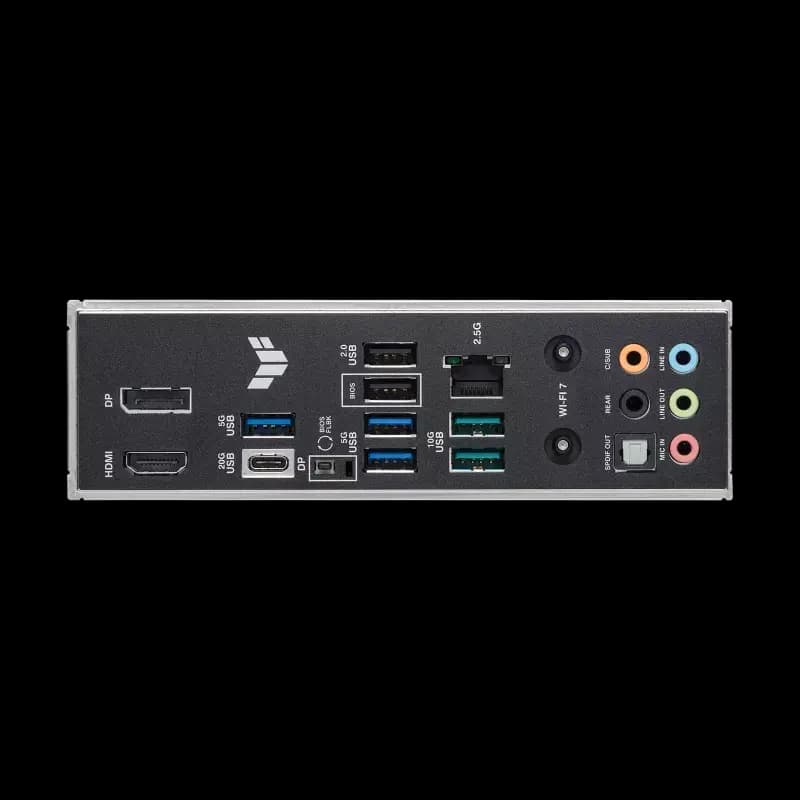

Rear Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt Mode)

2 x USB 10Gbps port (2 x USB Type-A)

3 x USB 5Gbps port (3 x Type-A)

2 x USB 2.0 port (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt Mode)

2 x USB 10Gbps port (2 x USB Type-A)

3 x USB 5Gbps port (3 x Type-A)

2 x USB 2.0 port (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet Port

5 x Audio Jack

1 x Optical S/PDIF Out Port

1 x BIOS FlashBack™ Button

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan Header

1 x 4-pin CPU OPT Fan Header

1 x 4-pin AIO Pump Header

4 x 4-pin Chassis Fan Header

Power Related

1 x 24-pin Main Power Connector

2 x 8-pin +12V CPU Power Connectors

Memory Related

3 x M.2 Slot (Key M)

4 x SATA 6Gb/s Ports

USB

1 x USB 10Gbps Connector (Supports USB Type-C®)

1 x USB 5Gbps Header Supports 2 additional USB 5Gbps ports

1 x USB 2.0 header Supports 2 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x Chassis intrusion header

1 x COM port header

1 x Front panel audio header (F_AUDIO)

1 x 10-1 pin front system panel header

1 x Thunderbolt™ (USB4®) header

Special features

ASUS TUF Protection

- DIGI+ VRM (- Digital power design with DrMOS)

- ESD protection

- TUF LANGuard

- Overload protection

- SafeSlot

- Stainless steel rear I/O

ASUS Q-Design

- M.2 Q-Latch

- PCIe slot Q-Release

- Q-Antenna

- Q-Board

- Q-DIMM

- Q-LED (CPU [red], DRAM [Yellow], VGA [White], Boot Device [Yellow Green])

- Q-Slot

ASUS Thermal Solution

- M.2 Heatsink

- VRM Heatsink Design

ASUS EZ DIY

- BIOS FlashBack™ Button

- BIOS FlashBack™ LED

- CPU Socket Lever Guard

- ProCool

- Pre-installed I/O Shield

- SafeDIMM

Aura Sync

- Addressable Gen 2 Headers

Software Features

ASUS Exclusive Software

Armory Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4

- Energy Saving

ASUS DriverHub

ASUS GlideX

TUF GAMING CPU-Z

Adobe Creative Cloud (Free Trial)

DTS Audio Processing

Norton 360 for Gamers (60-day Free Trial)

WinRAR (40-day Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Support

WOL by PME, PXE

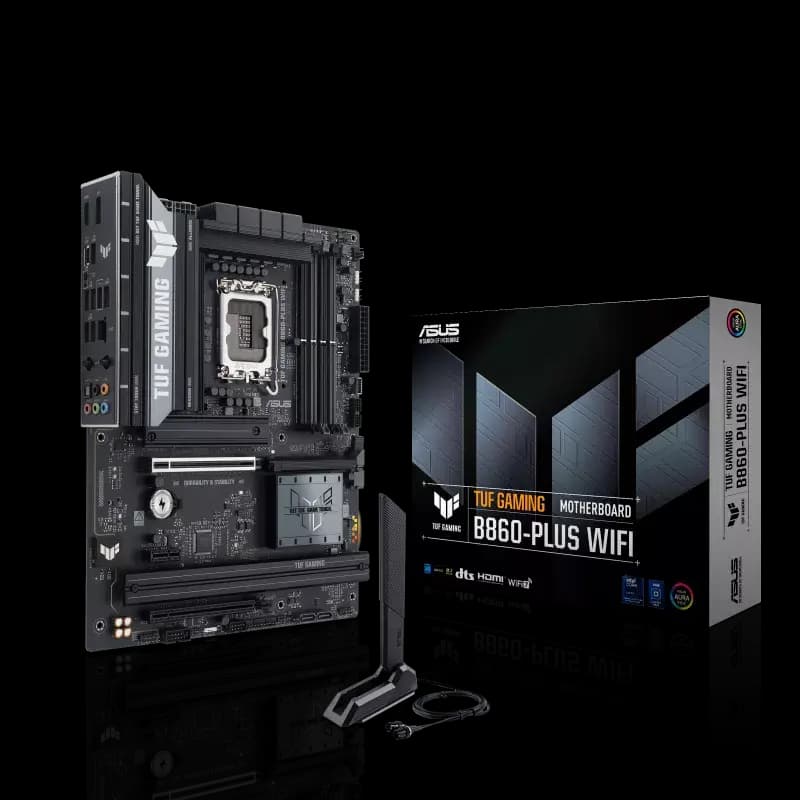

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

2 x M.2 rubber gasket

1 x Screw gasket for M.2 SSD

1 x TUF GAMING sticker

Documentation

1 x Quick Start Guide

Operating System

Windows 11 (22H2 and later)

Form Factor

ATX Form Factor

12 in x 9.6 in (30.5 cm x 24.4 cm)
